Van den Heuvel diagrams with POSYDON

Warning

This is an experimental feature of POSYDON. Unexpected behaviors or results may occur.

Note

To use the visualization functionalities, install the optional visualization modules pip install .[vis]

VHdiagram provides a visual representation of individual POSYDON binaries, offering a more intuitive sense of their properties. This tutorial uses the ‘population.h5’ dataset as an example. You can use the population in the Stellar Transient Populations tutorial.

Visualizing a Specific Binary

Simple Usage

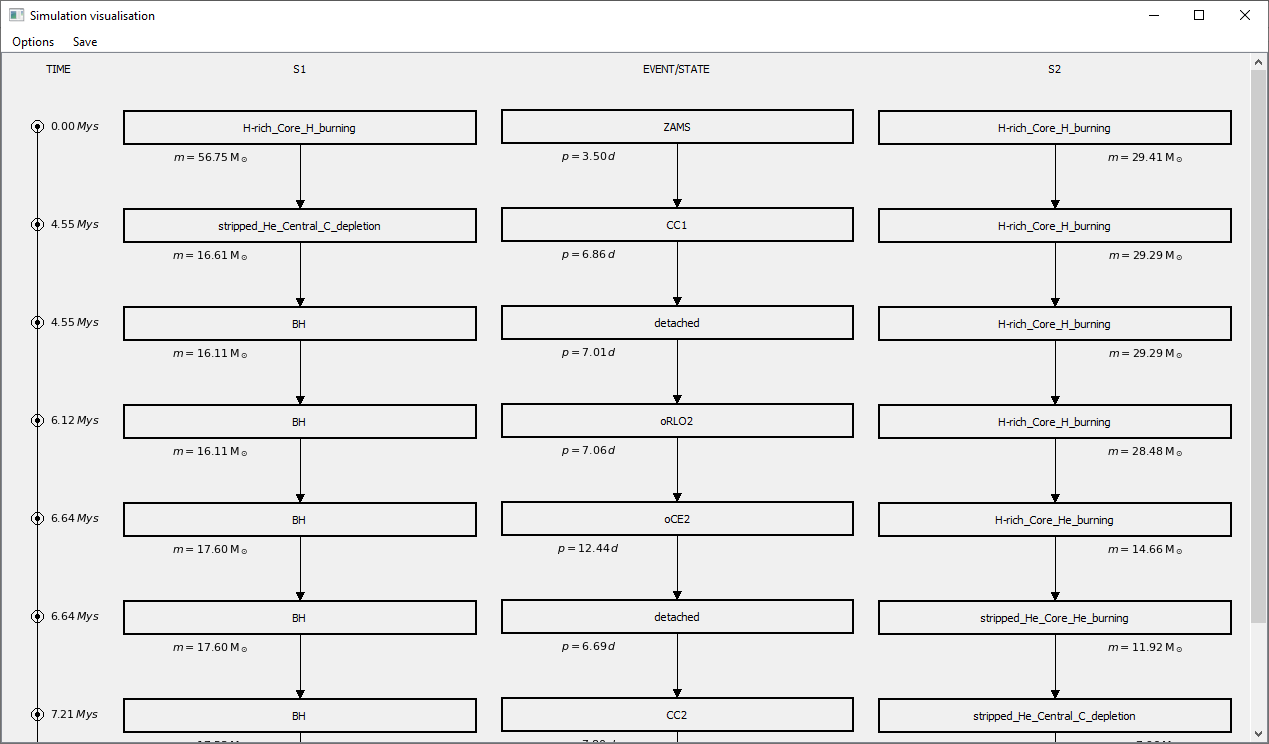

To visualize a specific binary within an interactive window, use the following code:

from posydon.visualization.VHdiagram import VHdiagram
VHdiagram('population.h5', path='./dataset/', index=18976)

Tip

Use the ‘path’ named parameter if your dataset resides in a different directory.

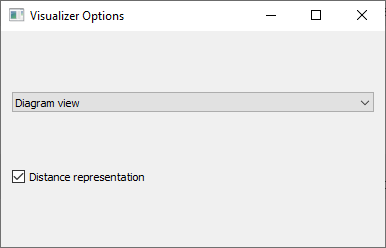

The options window, accessible via the ‘option’ button, lets you customize the view:

Clicking the ‘save’ button captures a screenshot of the current view and saves it to a newly created ‘screens’ folder in the current directory.

Predefined Views

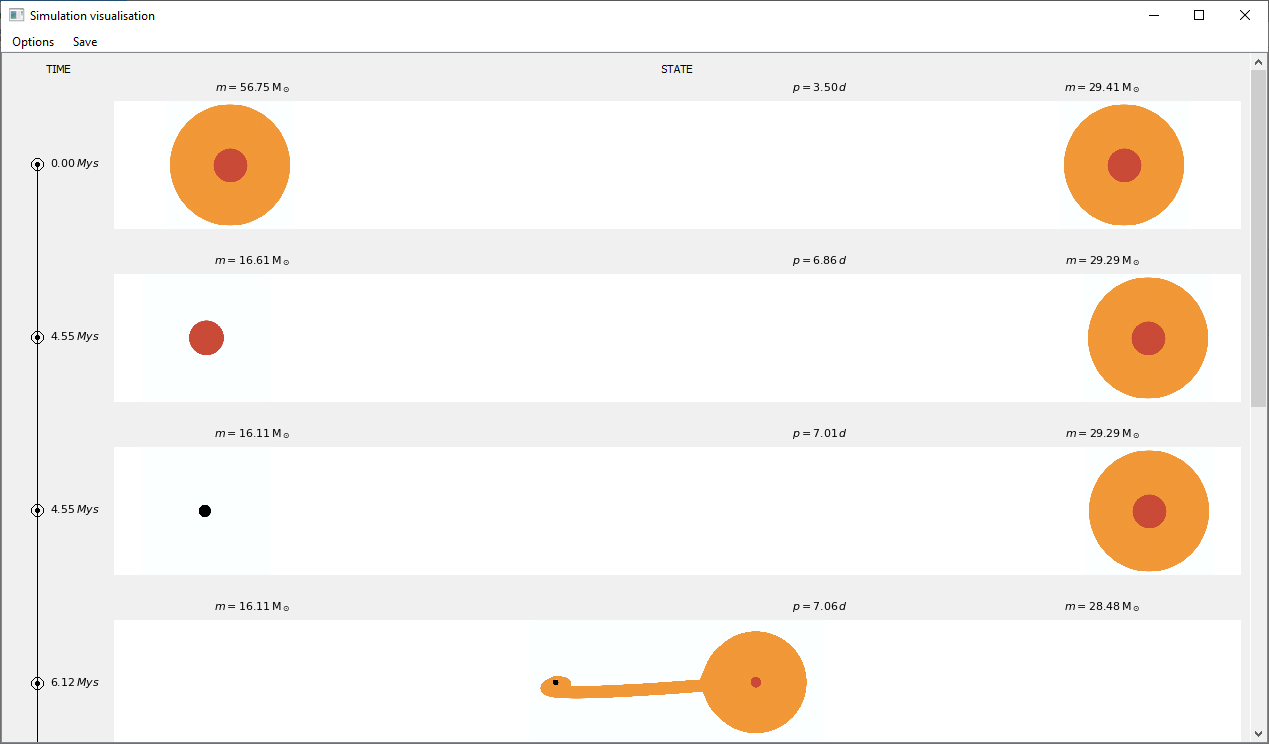

You can choose from four predefined views for faster visualization:

from posydon.visualization.VHdiagram import VHdiagram
from posydon.visualization.VH_diagram.PresenterMode import PresenterMode

VHdiagram('population.h5', index=19628, presentMode=PresenterMode.DIAGRAM)

Display Modes

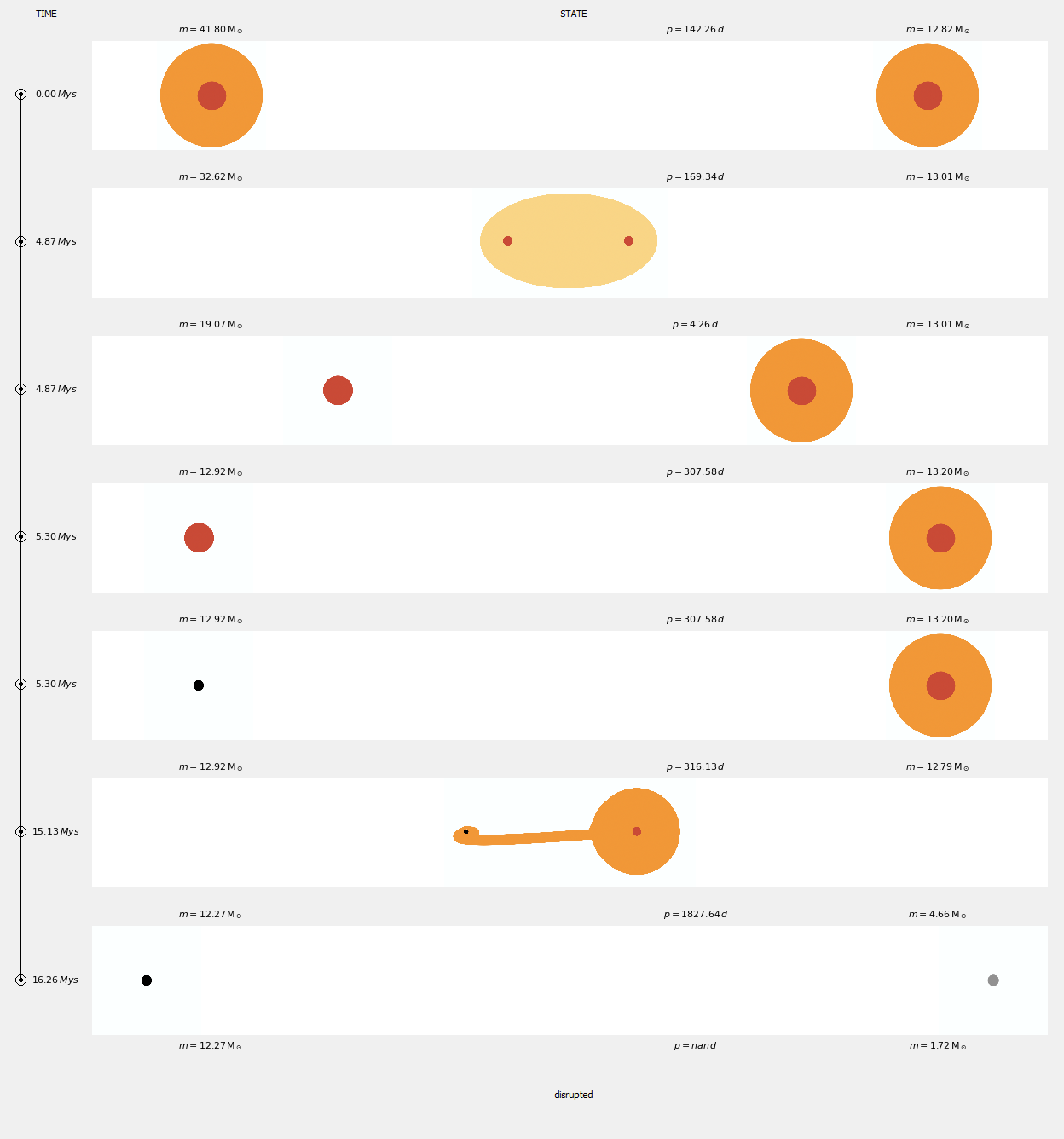

You have the flexibility to display the diagram either within an interactive window or inline within a Jupyter notebook. The available display modes are:

from posydon.visualization.VHdiagram import VHdiagram, DisplayMode
from posydon.visualization.VH_diagram.Presenter import PresenterMode

VHdiagram(
    "population.h5",
    index=19628,
    presentMode=PresenterMode.DIAGRAM,
    displayMode=DisplayMode.INLINE_B,
)

Advanced Visualization Techniques

Visualizing Multiple Binaries

The VDdiagramm_m module allows multiple binary visualizations to be arranged horizontally in a single plot:

from posydon.visualization.VH_diagram.PresenterMultiple import VHdiagramm_m
from posydon.visualization.VHdiagram import DisplayMode
from posydon.visualization.VH_diagram.PresenterMode import PresenterMode

VHD = VHdiagramm_m('./data/population.h5',
                index=[19627,19628,19629,19630],
                hierarchy=False,
                presentMode=PresenterMode.DIAGRAM,
                displayMode=DisplayMode.INLINE_B)

Hierarchical Visualization

This visualization style aggregates identical steps into a tree plot where nodes represent common steps. Each node is labeled with percentages relative to the parent node percentage.

from posydon.visualization.VH_diagram.PresenterMultiple import VHdiagramm_m
from posydon.visualization.VHdiagram import DisplayMode
from posydon.visualization.VH_diagram.PresenterMode import PresenterMode

VHD = VHdiagramm_m('./data/population.h5',
                index=[19627,19628,19629,19630],
                hierarchy=True,
                presentMode=PresenterMode.DIAGRAM,
                displayMode=DisplayMode.INLINE_B)

Binary Analysis Tools

Counting Binaries

Use the ParseDataFrame class to iterate through the binary file, counting identical binary simulations:

from posydon.visualization.VH_diagram.ParseDataFrame import ParseDataFrame

parse_df = ParseDataFrame('./data/population.h5')
parse_df.count_dict

>>> Counter({...})

Sorting Binaries

You can sort binaries based on filenames of images representing their steps:

VHD = VHdiagramm_m('./data/population.h5',
                index=VHD.get_sorted_index(),
                frequency=parse_df.get_frequencies(),
                hierarchy=False,
                presentMode=PresenterMode.DIAGRAM,
                displayMode=DisplayMode.INLINE_B)
